American Legend Motorcycles, Inc.

Tappets/Lifters and Tappet Blocks

Click on part numbers to add to your order





Part #   Description   List Price   Your Price

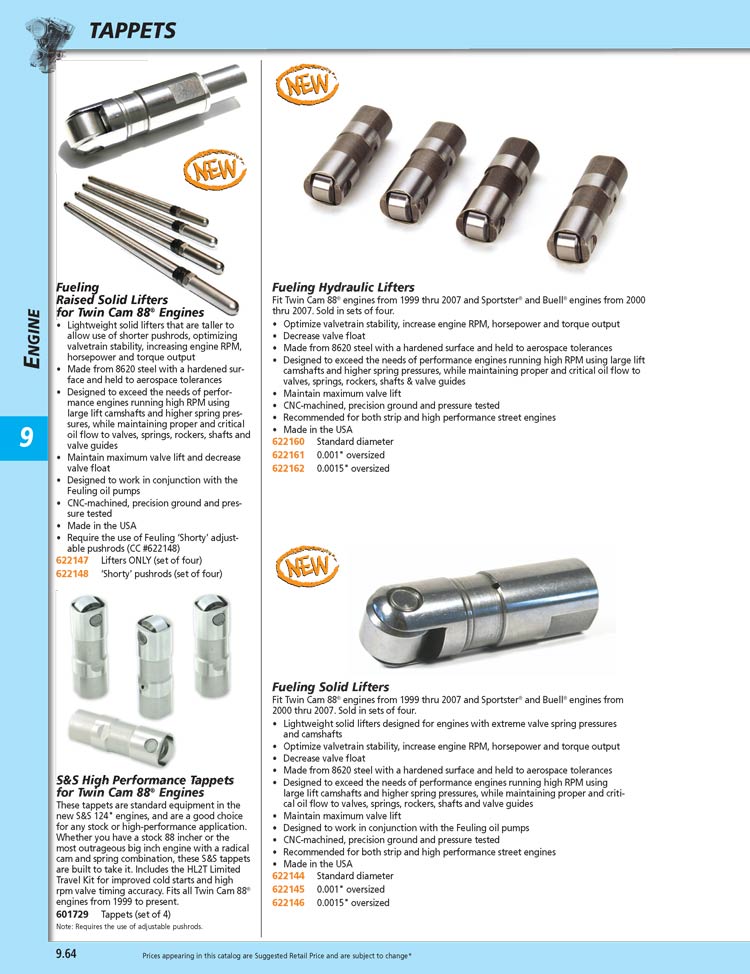

601729S&S TAPPET SET 99-UP TC259.95223.56
622147TC RAISED SOLIDS299.99254.99
622148TC SHORTY PUSHRODS244.99207.49
622160HYDRAULIC LIFTERS STD TC285.99242.99
622161HYDRAULIC LIFTERS 0.001 OS TC299.99254.99
622162HYDRAULIC LIFTERS 0.0015 OS TC299.99254.99





Part #   Description   List Price   Your Price
010551MTR FACT TPPT ASSY XL1952-8542.9936.49
010552MTR FACT TPPT ASSM.005 1952-8542.9936.49
010564MTR FACT TPPT ASSY .005 FL194845.9938.99
010580MTR FACT B/TW TPPT ASSY +.00542.9936.49
010581MTR FACT TPPT ASSY STD B/TW 1946.2938.19
20580BIG AXLE TAPPET ASSY B/T 48-8467.9957.49
20581BIG AXLE TAPPET ASSY.XL 58-8567.9957.49
20582B/AXLE SOLID TAP.+005 XL 58-8567.9957.49
20583BIG AXLE TAPPET +005 B/T 53-8461.9952.49
20584BIG AXLE TAPPET STD B/T 53-8461.9952.49
20586BIG AXLE HYDRAULIC TAP STD.B/T 53-8494.9980.49
20732BIG AXLE HYDRAULIC TAPPET EVO. STD.79.9967.49
20733BIG AXLE HYDRAULIC TAPPET EVO +.00579.9967.49
20739P/GLIDE H/TAPPET XL/BUELL STD.82.9970.49
20845HYDROSOLID TAPPT.XL86-90 BT84-89.9976.49
22306HYDROSOLID TAPPT.TC 88. 1999UP94.9979.99
22307HYDROSOLID TAPPT.EVO XL 1991UP89.9975.99
22348JIMS H/SOLID TAP EVO +.00294.9980.49
22350LONG HYDROSOLID TAPPET T/C 88114.9997.49
22351JIMS POWERGLIDE TAPPET T/C 8894.9980.49
22352JIMS BIG AXLE SOLID TAPPET EVO74.9963.49
59240R/T HYDRAULIC ROLLER LIFTER B/T 84UP31.9927.49





Part #   Description   List Price   Your Price
20051TAPPET ROLL KT 18534-29A37.9932.49
20052TAPPET SCR SPORT 18554-579.998.49
20053TAPPET SCR 74 18555-369.998.49
20088TAPPET NUT (10) 18570-389.998.49
20256CRANE HYDRAULIC ROLLER LIFTR.B/T84UP73.9960.99
20257CRANE HYDRAULIC TAPPET XL/BUELL 91UP26.9922.49
24079TAPPET ROLLER RPLS.AXLES-PAK 46.695.69
24570CRANE TAPPET ROLLER KT.EVO 84-65.9954.49
36108HYD TO SOLID LIFTER KIT16.9914.49
45718S&S LIFTR.TRAV.LIMIT KT B/T86-17.4515.01
45843S&S LIFT.LIMT.KIT B/T 84-8517.4515.01
56140HYDRA UNIT (17920-53A)B/T53-8341.9935.99
56149HYDRAULIC UNIT #17920-53A92.9978.99
600146FUELING HP+LIFTERS TWINCAM114.9997.49





Part #   Description   List Price   Your Price

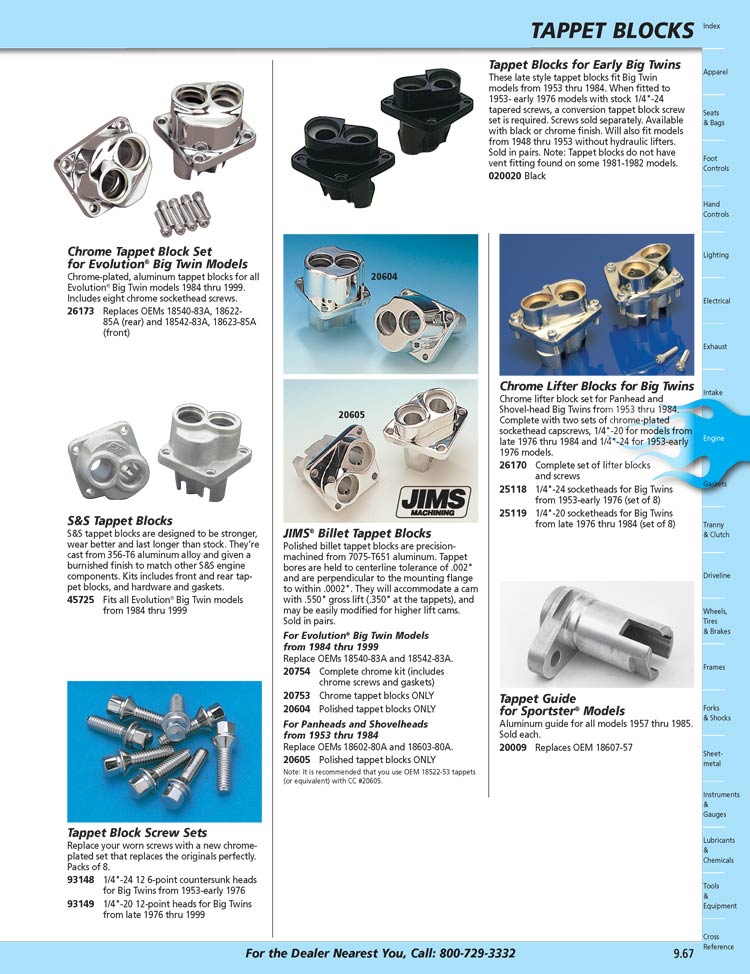

020020BLK TPPT BLCK BIG TW 53-8492.6977.24
20009TAPPET GUIDE 18607-5764.9954.99
20604JIM S POL.BILLT.LFTR BLOKS-EVO374.99319.49
20605JIM S BLLT.LFTR BLKS-SHOVEL374.99319.49
20753JIM S CHROME TAPPET BLOCKS B/T84-469.99399.99
20754CHROME TAPPET BLOCK+SCRW.KT BT84-469.99399.99
251181/4-24 ALLEN SCRWS-FITS#261704.894.19
251191/4-20 ALLEN SCRWS-FITS #261708.296.74
26170CHROME LIFTER BLOCK SET B/T 53-84124.99102.49
26173CHROME EVO B/T TAPPET BLOCKS 84UP159.99129.99
45725S&S TAPPET BLOCK KIT B/T 84-99179.95154.76





Part #   Description   List Price   Your Price

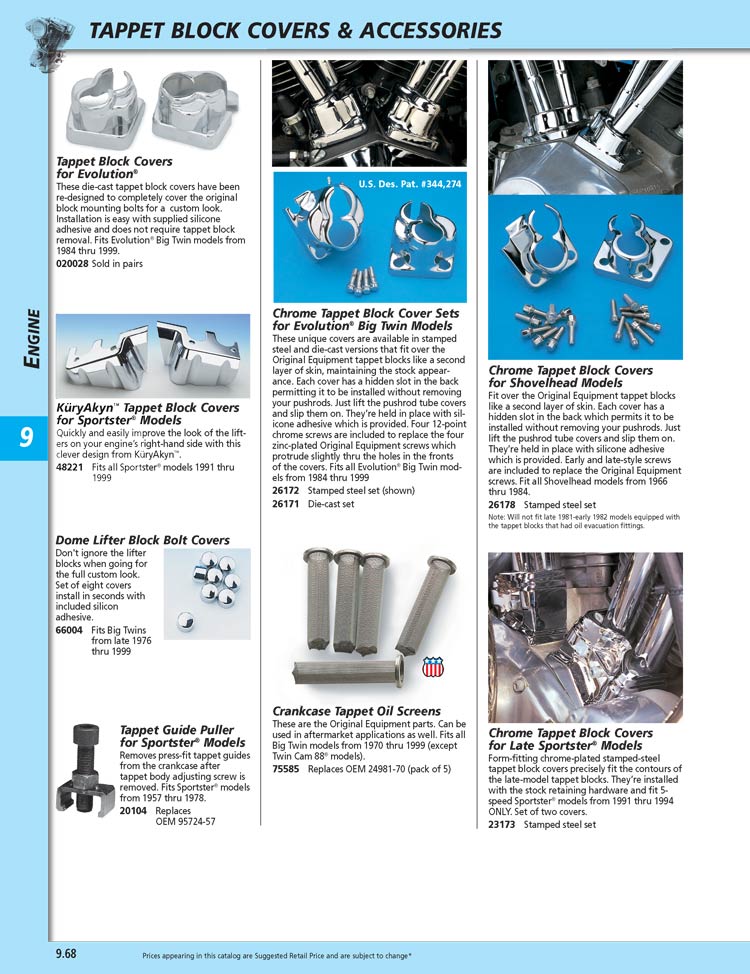

020028TPPT BLOCK CVRS F/ EV B/TW 84+55.9946.49
23173CHROME LIFTER BASE CVR.XL 91-9442.9936.49
26171CHROME EVO LIFTER CVR.ST-DIE CAST30.9924.49
26172CHROME EVO TAPPET COVER SET28.9924.49
26178CHROME SHOVEL TAPPET BASE COVER44.9937.99
48221CHROME TAPPET BLOCK COVERS-XL 91-49.9942.49
75585OIL SCREEN(24981-70) 5PK BT70-17.9914.99





Part #   Description   List Price   Your Price
020028TPPT BLOCK CVRS F/ EV B/TW 84+55.9946.49
23173CHROME LIFTER BASE CVR.XL 91-9442.9936.49
26171CHROME EVO LIFTER CVR.ST-DIE CAST30.9924.49
26172CHROME EVO TAPPET COVER SET28.9924.49
26178CHROME SHOVEL TAPPET BASE COVER44.9937.99
48221CHROME TAPPET BLOCK COVERS-XL 91-49.9942.49
75585OIL SCREEN(24981-70) 5PK BT70-17.9914.99
20839P/GLIDE TAPPT BLK.KT B/T 53-84649.99559.99
30146FAST TIMES PUSHROD KIT B/T 84UP139.99117.99

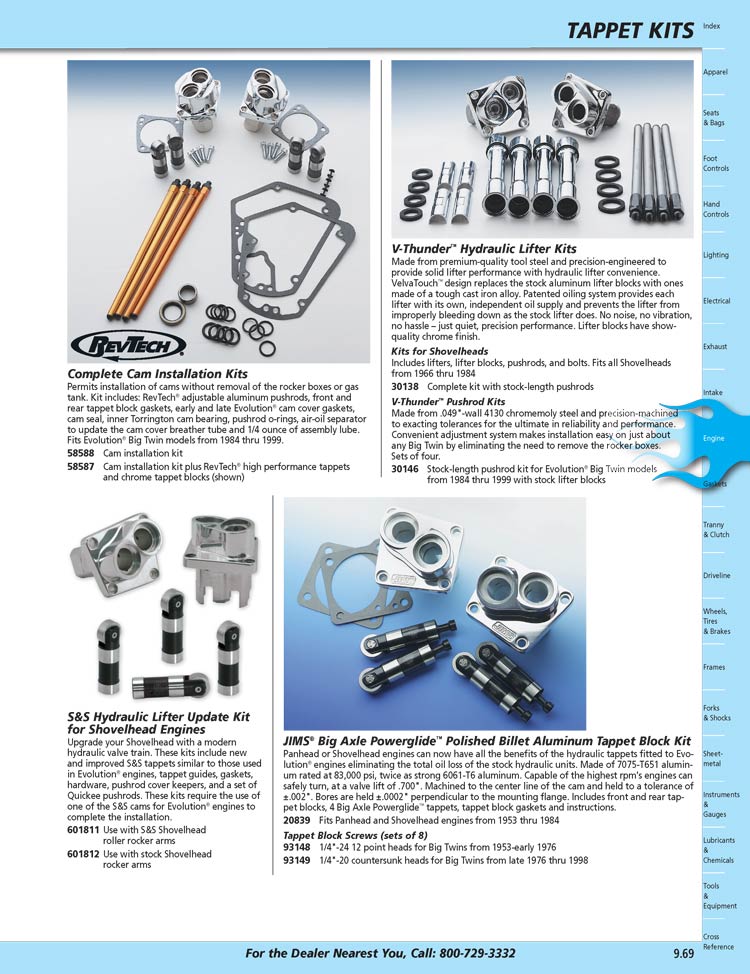

58587CAM INSTALL KT W/BLOCKS BT84UP329.99279.99
601811S&S HYD LIFTER UPDT KIT 69-84779.95670.76
601812S&S HYD LIFTER UPDT KIT 69-84779.95670.76
93148CHROME TAPPET BLOCK SCREW-EARLY8.997.14
93149CHROME TAPPET BLOCK SCREW - LATE8.997.14



Search For Products

View My Saddlebags

checkout

Store Lobby

Hot New Products | Specials and Sales | About Our Company | Home | Contact Us | Hot Links
Terms & Shipping | Legal & Copyright | Credits

American Legend Motorcycles, Inc.
228 Lisle Industrial Ave.
Lexington, KY 40511
Sales - 1-888-272-9143
TechLine - 1-859-255-3544

© Copyright 1999-2007 American Legend Motorcycles, Inc. All rights reserved.
All trademarks are owned by Harley Davidson, Custom Chrome or American Legend Motorcycles, Inc.

















































Crane Performance Solid Tappet Kits for Shovelheads
Replaces the stock hydraulic lifters on all Shovelhead motors with a performance kit consisting of solid lifters and adjustable pushrods. The tappet bodies feature relocated pushrod seat heights, resulting in improved valve train geometry, reduced tappet block wear and a weight savings (when combined with the pushrods of 33% over the stock components). Includes a set of 3/8" adjustable pushrods made from seamless 4130 chrome moly steel tubing,heat-treated to 128,000 psi tensile strength.

Sifton Custom Solid Tappet and Pushrod Set for Shovelheads
By shortening the tappet length and increasing the pushrod length, the contact point of the pushrod and tappet has been lowered. This reduces the normally severe angle on the front exhaust and along with the reduced diameter of the pushrods, eliminates pushrod 'rub'. Shortening the solid tappet also makes it lighter. The pushrods are made of   7/16" diameter 2024 aluminum tubing with a .095" wall thickness, making them stronger than 1/2" diameter standard wall pushrods. May require the removal of the cam for installation.

Hy-Rev Hydraulic lifters by V-Thunder Patented lifter design have a unique anti pump up race retainer that replaces the normal spring retaining clip to precisely limit travel of the hydraulic lifter plunger. During operation, the valve train performs more like a mechanical system, allowing high RPM operation with the quiet and precision of hydraulics. Roller and axle are made from high carbon/chromium bearing quality steel which is hardened for improved wear and load capacity and the pushrod seat is nitrided for severe service. Made in the USA. For Evolution® Big Twin models 1984 to present and Evolution Sportster® models 1986 thru 1990.

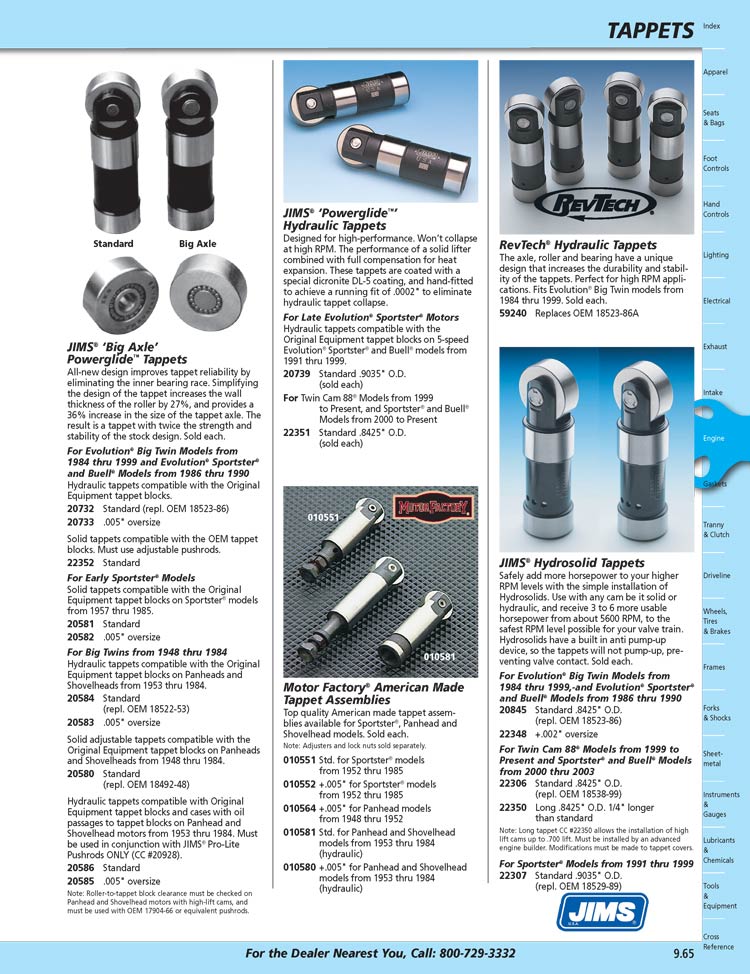

JIMS 'Big Axle' Powerglide Hydraulic Tappets for Evolution® Big Twin Models
All-new design improves tappet reliability by eliminating the inner bearing race. Simplifying the design of the tappet increases the wall thickness of the roller by 27%, and provides a 36% increase in the size of the tappet axle. The result is a tappet with twice the strength and stability of the stock design. For Evolution® Big Twin models 1984 to present, and 4-speed Evolution® Sportster® and Buell® models 1986 thru 1990.

For Early Sportster® Models
Solid Tappets compatible with the Original Equipment tappet blocks on Sportster® models 1957 thru 1985

For Panheads and Shovelheads
Hydraulic tappets compatible with Original Equipment tappet blocks and cases with oil passages to tappet blocks on Panhead and Shovelhead motors 1953 thru 1984

Sifton Adjustable Tappets For Sportster® Models
Use only with the Sifton non-adjustable pushrods listed below. Tolerances are held very close and machining is precise from +.0000" to -.0002" on diameter, and .001" roller location from center for accurate cam timing. For all Sportster® models 1957 thru 1985 (except XR models)

For Panheads and Shovelheads
Use only with the Sifton non-adjustable pushrods listed below. Made of the same materials as the tappets for Sportster® models, and held to close tolerances. For Big Twins 1948 thru 1984.

Sifton 7/16" Non-Adjustable Pushrods
Smaller-diameter performance pushrods designed to be used in conjunction with Sifton adjustable tappets to eliminate the pushrod 'rub'. Formed from 7/16"-diameter, 2024 aluminum tubing with a .095" wall thickness, making them stronger than 1/2" standard-wall pushrods. Sets of four.

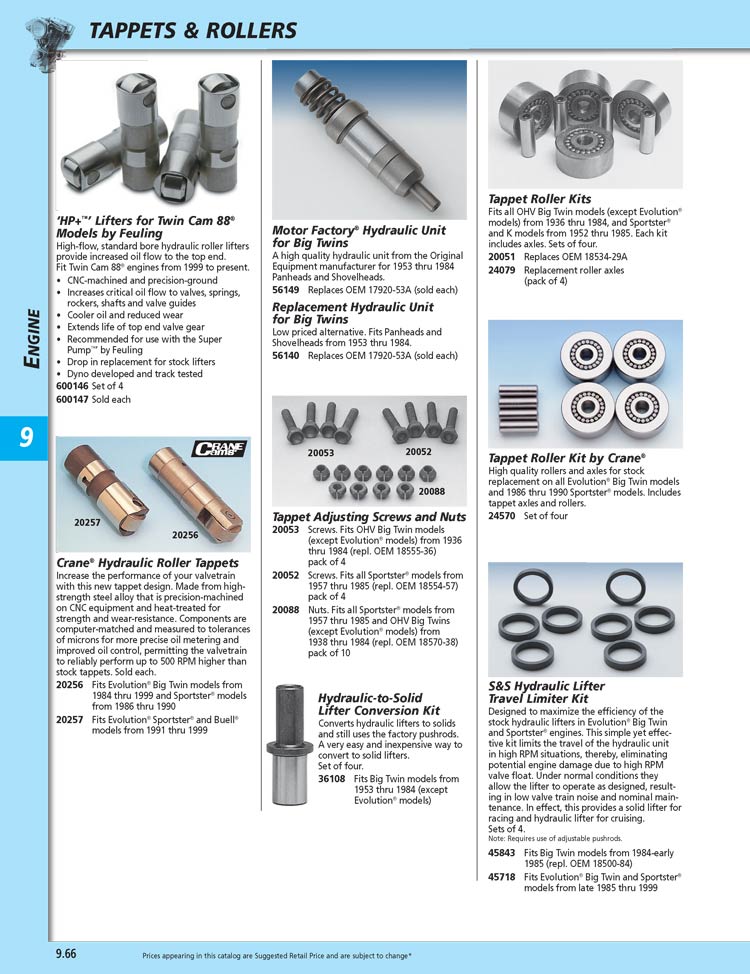

Crane Hydraulic Roller Tappets Increase performance of the valve train with this new tappet design. Made from high-strength steel alloy that is precision machined on CNC equipment and heat-treated for strength and wear-resistance.Components are computer-matched and measured to tolerances of microns for more precise oil metering and improved oil control, permitting the valve train to reliably perform up to 500 RPM higher than stock tappets. Sold each.

JIMS Hydraulic Powerglide
Precision Roller Tappets
Designed for high-performance. Won't collapse at high RPM. The performance of a solid lifter combined with full compensation for heat expansion.These tappets are coated with a special dicronite DL-5 coating, and hand-fitted to achieve a running fit of .0002" to eliminate hydraulic tappet collapse.

For Late Evolution Sportster® Motors
Hydraulic tappets compatible with the Original Equipment tappet blocks on 5-speed Evolution Sportster® and Buell® models 1991 to present.

MOTOR FACTORY AMERICAN MADE TAPPET ASSEMBLY FOR EVOLUTION
Top quality performance hydraulic tappet assembly for Evolution Big Twin models 1984-up and Sportster 1986-1990. The zero back lash design eliminates collapsing of the hydraulic unit allowing the camshaft to open fully, resulting in more power. Each tappet is hand matched to a running fit of .0002" and treated with dicronite DL-5 coating for wear resistance. Available in Standard or +.005"oversize for worn tappet blocks. Replaces OEM 18523-86. Sold each.

HYDRAULIC LIFTER UNITS
Precision machined on computer-controlled equipment, these replacement lifter units duplicate the hydraulic characteristics of the original factory part. Fits Panhead® and Shovelhead models 1953-1984: Replaces OEM 17920-53A. Sold each.

Premium Hydraulic Unit for Big Twin Models
A hydraulic unit for 1953 thru 1984 Panheads® and Shovelheads from the Original Equipment manufacturer.

Hydraulic-to-Solid Lifter Conversion Kit
Converts hydraulic lifters to solids and still uses the factory pushrods.A very easy and inexpensive way to convert to solid lifters. Set of four.

JIMS Tappet Roller Kit
Replacement roller and axle kit that fits Evolution Big Twin models 1984 to present and Evolution Sportster® models 1986 thru 1990. Set of four.

TAPPET ROLLER ASSEMBLIES
These tappet rollers are made from quality steel and held to exact tolerances. Fits  Panhead and Shovelhead models through 1984 and Sportster® models through 1985.

S & S HYDRAULIC LIFTER LIMITED TRAVEL KIT
Designed to maximize the efficiency of the stock hydraulic lifters in Evolution Big Twin and Sportsters engines. This simple yet effective kit limits the travel of the hydraulic unit in high RPM situations, there by, eliminating potential engine damage due to high RPM valve float. Under normal conditions they allow the lifter to operate as designed, resulting in low valve train noise and nominal maintenance. In effect, this provides a solid lifter for racing and hydraulic lifter for cruising.
