American Legend Motorcycles, Inc.

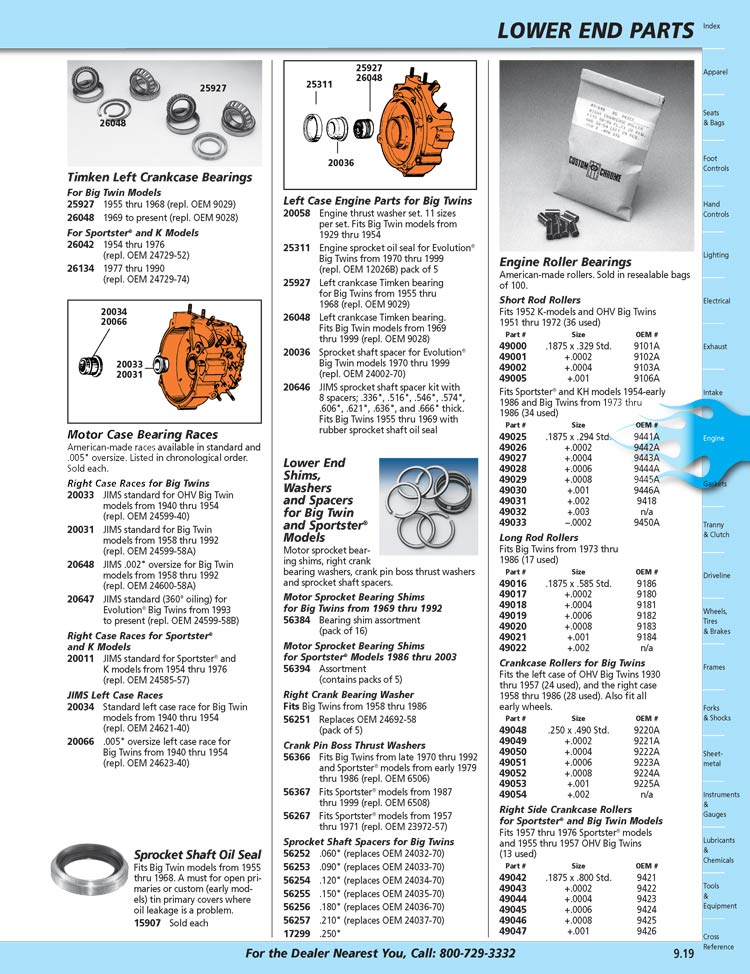

Lower End Parts

Click on part numbers to add to your order





Part #   Description   List Price   Your Price
15907SPROCKET SHAFT OIL SEAL19.9916.99
17299SPROCKET SHAFT SPACER .250 THK22.9918.99
20011BRG RACE RT CASE 24585-5764.9954.99
20031RIGHT CASE BEAR.RACE B/T-58-9264.9954.99
20033BRG RACE RT CASE 24599-4064.9954.99
20034BRG RACE LT CASE 24621-4075.9964.49
20036SPKT SHAFT SPACER24002-709.998.49
20058FLY/W WASH SET 24100-17S27.9923.49
20066BRG RACE L/CASE 24623-4074.9963.49
20646SPROCKET SHAFT SPACER KIT64.9954.99
20647RT.CASE BRN.RACE B/T 93-UP STD69.9959.49
20648RT.CASE BRN.RACE B/T 58-92+00256.9948.49
25927TIMKEN BRG SET 55-68 902947.9940.49
26042LEFT C/CASE BRG 24729-5259.9949.99
26048LEFT C/CASE BRG 69-UP902829.9924.49
26134LEFT C/CASE BRG 24729-7429.9924.49
56251RIGHT CRANK BEARING WASHER14.9912.49
56252SPROCKET SHAFT SPACER .060 TH.14.9912.49
56253SPROCKET SHAFT SPACER .090 TH.14.9912.49
56254SPROCKET SHAFT SPACER .120 TH.14.9912.49
56255SPROCKET SHAFT SPACER .150 TH.14.9912.49
56256SPROCKET SHAFT SPACER .180 TH.14.9912.49
56257SPROCKET SHAFT SPACER .210 TH.14.9912.49
56267THRUST WASHER CRANK PIN BOSSXL12.9910.49
56366THRUST WASHER CRANK PIN BOSS.12.9910.99
56367THRUST WASHER CRANK PIN BOSS.12.9910.99
56384MTR.SPKT.BRNG.SHIM ASSORTMENT19.9916.49
56394MTR.SPKT.BRNG.ASSORTMENT19.9916.49





Part #   Description   List Price   Your Price
15928ROD RACE SET BIG TWIN26.9922.99
15929ROD BRG RACES SPT 54&UP26.9922.99
18669RETAINER RT.RLLR.BRNG.BT 58-8618.9915.99
18670CRANK PIN 74 23961-4143.9937.49
18671ROLLERS W/CAGE 24385-40B30.9926.49
18673CRANK PIN XL 23960-5451.9943.49
18674ROD ROLLER W/CAGE XL25.9921.99
18676CRANK PIN 80 23961-8041.9935.49
18678C/ROD ROLLERS & RET. B/T 87-9972.9959.99
20007LH SCREW FOR 24005-57(10)19.9916.99
20008GEAR SHF PINION 24005-5784.9971.99
20022CIR BRK GR SFT #25856-3612.9910.99
20023IDLER GEAR SHAFT 25791-3615.9913.49
20025SPROCKET SHAFT 24001-3055.9947.49
20028GEAR SHAFT-24007-3994.9980.99
20045BSH IDLER SHAFT 25785-30A12.9910.74
20059SPRKT SHAFT SPT 24000-5779.9967.49
20060PIN SHAFT 58-72 24006-5879.9967.49
20061PIN SHAFT 73-E81 24006-7379.9967.49
20072SPKT SHAFT 56-64 24001-5679.9967.49
20074SPKT SHAFT 70-71 24001-7084.9971.99
20075SPKT SHAFT 72-UP 24001-7284.9971.99
20076NUT LOCK KIT 74 23966-7818.9915.99
20079IDLER SHAFT KIT 25791-3611.999.99
20080CIRCUIT BRAKE/KT 25856-7718.9915.99
20089P/SHAFT KEY (10) 23985-1211.999.99
20090CRK PIN KEY (10) 23985-185.594.44
20092S/SHAFT KEY (10) 23985-566.895.84
20093SPACER GR CVR 25800-36(2)10.999.09
20636BIG TWIN ROD RACES 41-UP54.9945.99
20644PINION GEAR SHAFT B/T L81-8679.9967.99
20657IDLER SHAFT & BUSHING KIT21.9918.49
20658CIRCUIT BREAKER SHFT & BUSHING29.9925.49
20781SPROCKET SHAFT KT.B/T L81-E85109.9993.49
25273PISTON ROD BSHG 24334-366.595.54
25608SPORT PIN BSHG #24331-366.595.54
56307CRANKPIN KEY81UP11218(10)5.194.14





Part #   Description   List Price   Your Price
20041CRANK PIN HD74 #23961-4172.9961.99
20042CRANK PIN SPORT #23960-5469.9959.49
20186CRANK PIN 41-E81 FL/FX ACCEL120.9999.99
20187CRANK PIN L81-UP BIG TWINS120.9999.99
20230SPROCKET SHAFT 72-E81 FX/FL125.99103.99
20263PINION SHAFT 58-72 FL/FX/FLH134.99111.49
20264PINION SHAFT 73-E81 BIG TWIN145.99120.49
20266PINION SHAFT L83-86 BIG TWINS155.99128.49
20420CRANK PIN XL L81-UP 23960-80A69.9959.49
20422CRANK PIN BT L83-UP 23961-80A75.9964.49
207773HOLE CRANK PIN KIT B/T 41-81109.9993.49
207782HOLE CRANK PIN KIT B/T 41-81109.9993.49
207792HOLE CRANK PIN KIT B/T 81-UP109.9993.49
207803 HOLE CRANK PIN KIT B/T 81-UP109.9993.49
20782PINION SHAFT KIT B/T 1973-81114.9997.49
20783PINION SHAFT KIT B/T 1981- E86114.9997.49
20924JIMS CRANKPIN KEY (23985-18)9.998.49
20925JIMS PINION GEAR KEY(23985-54)9.998.49
20926JIMS CRANKPIN KEY (11218)6.995.94
20932JIMS PIN.GEAR SPACR(24703-54B)24.9920.99
20934O/PMP PIN.GR.DRIVE SHFT 26349-8454.9946.49
22332JIM S CRANK PIN 23974-87374.9963.99
22333JIM S CRANK PIN 23975-87374.9963.99
22335JIMS PIN GEAR SHAFT 24006-8779.9967.99

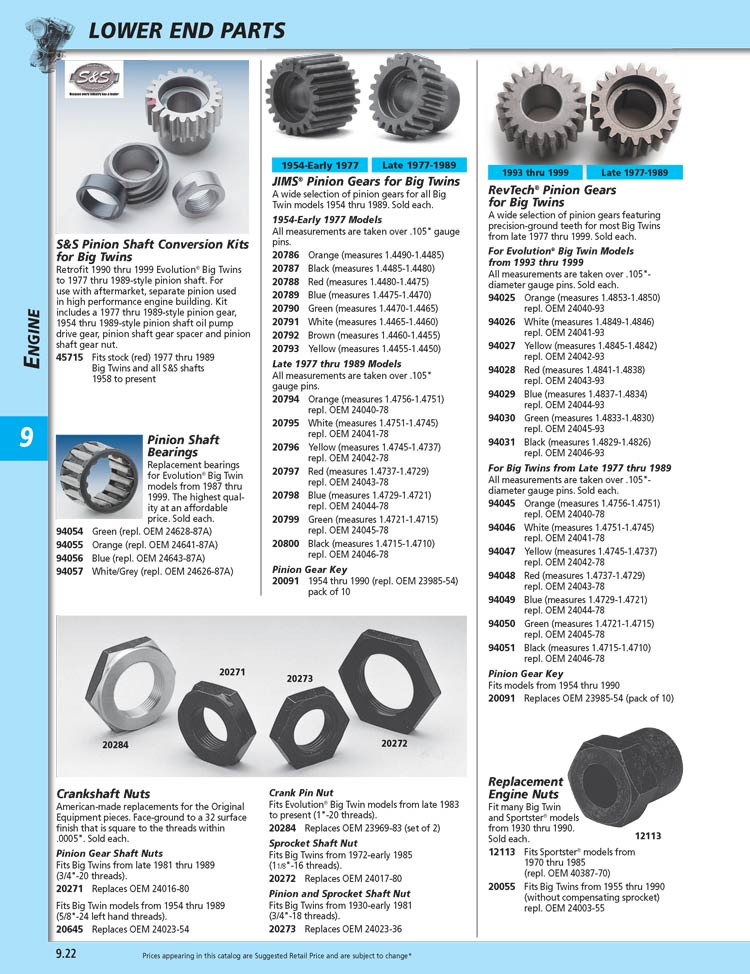

Part #   Description   List Price   Your Price
12113XL ENGINE SPROCKET NUT 1970-8511.999.99
20055LATE SPRKT NUT 24003-557.196.09
20091P/SHAFT KEY (10) 23985-545.594.44
20271NUT PINION GEAR SHAFT L81-8916.9914.49
20272NUT SPROCKET SHAFT 1972-E8521.9918.49
20273NUT PINION AND SPROCKET 30-E8119.9916.99
20284NUTS CRANKPIN 83-UP 1 X20 THRD35.9930.49
20645PINION SHAFT NUT B/T 1954-899.997.99
20786PINION GEAR (24010-OR)B/T54-77109.9993.49
20787PINION GEAR (24010-BL)B/T54-77109.9993.49
20788PINION GEAR (24010-RE)B/T54-77109.9993.49
20789PINION GEAR (24010-BLU)BT54-77109.9993.49
20790PINION GEAR(24010-GR) BT 54-77109.9993.49
20791PINION GEAR (24010-WH) BT54-77109.9993.49
20792PINION GEAR(24010-BR) BT 54-77109.9993.49
20793PINION GEAR (24010-YE) BT54-77109.9993.49
20794PINION GEAR (24040-78) BT77-8994.9980.49
20795PINION GEAR (24041-78) BT77-8994.9980.49
20796PINION GEAR (24042-78) BT77-8994.9980.49
20797PINION GEAR (24043-78) BT77-8994.9980.49
20798PINION GEAR (24044-78) BB77-8994.9980.49
20799PINION GEAR (24045-78) BT77-8994.9980.49
20800PINION GEAR (24046-78) BT77-8994.9980.49
45715S&S 90-UP PIN.GR.CONV.KIT RED115.9599.72
94025PINION GEAR (ORANGE) 24040-9337.9931.99
94026PINION GEAR (WHITE) 24041-9337.9931.99
94027PINION GEAR (YELLOW) 24042-9337.9931.99
94028PINION GEAR (RED) 24043-9337.9931.99
94029PINION GEAR (BLUE) 24044-9337.9931.99
94030PINION GEAR (GREEN) 24045-9337.9931.99
94031PINION GEAR (BLACK) 24046-9337.9931.99
94045PINION GEAR (ORANGE)24040-7839.9933.99
94046PINION GEAR (WHITE)24041-7839.9933.99
94047PINION GEAR (YELLOW)24042-7839.9933.99
94048PINION GEAR (RED)24043-7839.9933.99
94049PINION GEAR (BLUE)24044-7839.9933.99
94050PINION GEAR (GREEN)24045-7839.9933.99
94051PINION GEAR (BLACK)24045-7839.9933.99
94054PINION BEARING-RPLS#24628-87A19.9916.99
94055PINION BEARING-RPLS#24641-87A19.9916.99
94056PINION BEARING-RPLS#24643-87A19.9916.99
94057PINION BEARING-RPLS#24626-87A19.9916.99



Search For Products

View My Saddlebags

checkout

Store Lobby

Hot New Products | Specials and Sales | About Our Company | Home | Contact Us | Hot Links
Terms & Shipping | Legal & Copyright | Credits

American Legend Motorcycles, Inc.
228 Lisle Industrial Ave.
Lexington, KY 40511
Sales - 1-888-272-9143
TechLine - 1-859-255-3544

© Copyright 1999-2007 American Legend Motorcycles, Inc. All rights reserved.
All trademarks are owned by Harley Davidson, Custom Chrome or American Legend Motorcycles, Inc.





































Stock replacement crank shaft assemblies come complete with rods and shaft fully assembled and balanced for stock cast pistons.

CRANK SHAFTS FOR BIG TWINS

CRANK SHAFTS FOR SPORTSTER

The S & S 89" stroker kit is designed with maximum potential engine life and performance in mind. Each component is engineered with the strongest possible construction available. Design features include:

Available for Evolution® Big Twins 1984-up, each kit includes flywheel assembly with rods and shafts (balanced, trued, and ready to Install), +.005" oversized pistons with rings, wrist pins and retainers and instructions.

Engineered with the strongest possible materials and construction methods available. Available in 4-1/4" (stock) or 4-5/8" strokes, each S & S crank shaft is factory assembled and comes complete with heavy duty rods, pinion shaft and sprocket shaft fully assembled, ready to install. Flywheels only are also available for stock replacement.

These connecting rods have been designed as heavy duty replacements for stock or modified Harley Davidson® engines. Each set comes complete with crank pin,bearings, bearing retainers, nuts, and piston pin bushings. Ready to install.Design features include: Drop forged from 4140 chrome moly steel  Harder than stock heat treatment specifications Additional rod to rod clearance to accommodate strokes up to 5"  7.440" center to center length

FOR BIG TWINS

Ready to install, complete with crank pin, crank pin nuts, piston pin bushings and rod rollers with aluminum retainers.

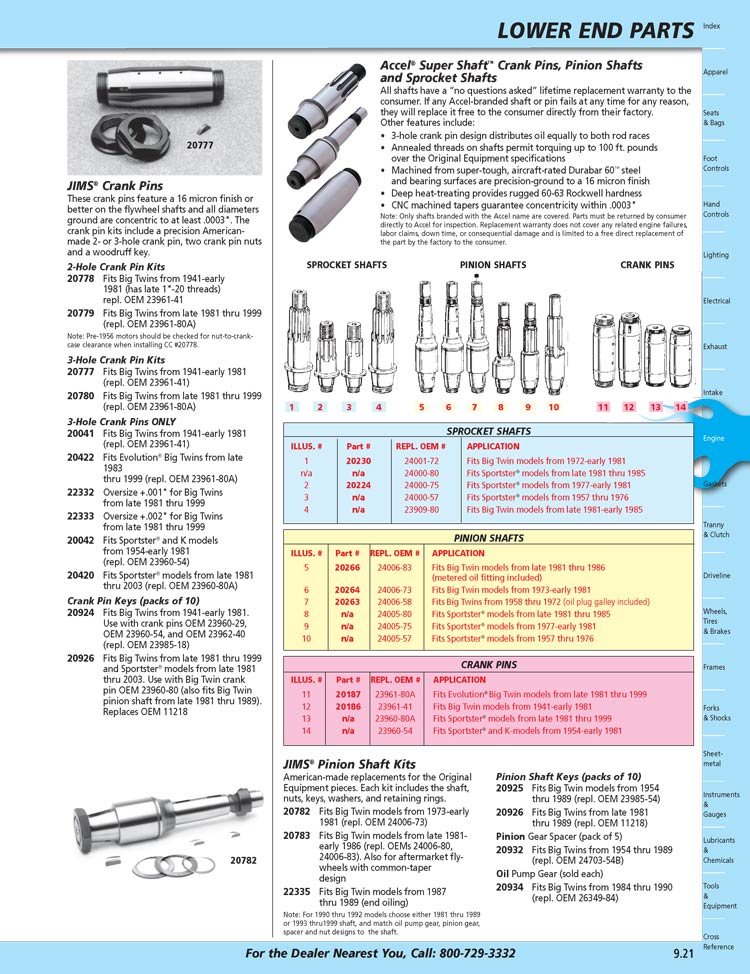

JIMS Crank Pin Kits
These crank pins feature a 16 micron finish or better on the flywheel shafts and all diameters ground concentric to at least .0003". Each kit includes a precision American made 2- or 3-hole crank pin, two crank pin nuts and a woodruff key.

3-Hole Crank Pin Kits

MOTOR FACTORY® AMERICAN MADE ENGINE SHAFTS
These quality American made crank pins and flywheel shafts are made from a premium aerospace approved chromium nickel molybdenum alloy with state of the art computerized manufacturing equipment. This alloy is vacuum degassed to ensure meeting the magnetic particle standards of ASM2301 making it the most durable alloy available to insure long lasting performance. The crank pins feature a new oiling design, 180 degrees apart, for more complete lubrication on bearing diameter. Made in the USA.

Upper Rod Bushings

Connecting Rod Races
Complete set of three male and female races.

Crankcase Rollers for Big Twins
For the left case of OHV Big Twins1930 thru 1957 (24 used), and the right case 1958 thru 1986 (28 used). Also fit all early wheels.

Right Side Crankcase Rollers forSportster® and Big Twin Models
For 1957-1976 Sportster models and1955-1957 OHV Big Twins (13 used)
