American Legend Motorcycles, Inc.

Oil Pumps and Parts

Click on part numbers to add to your order





Part #   Description   List Price   Your Price
092402WASHER CHAIN OILER FL/FX 48-841.51.1
20095O PMP SFT KEY26348-15(10)4.894.19
20233PLUG-1/8-27 NPT-CHROME ALLEN2.992.34
20236FITTING-CHR-PRI.CHAIN OIL2.992.34
20237DRIVE GEAR-OIL RETURN14.9912.49
20238IDLER GEAR-OIL RETURN14.9912.49
20240IDLER GEAR-OIL SUPPLY11.9910.09
20241OIL PUMP SPRING-RELIEF VL0.590.49
20242PLUNGER-RELIEF VALVE6.295.34
20243COVER SCREW-CHROME -OIL PUMP4.993.99
20244OIL PUMP SPRING-CHECK VLV1.491.24
20245ADJUST.SCREW-CHAIN OILER5.994.99
20246LOCKNUT-ADJ.SCREW-10/321.691.44
20247PLUG-1/16 NPT-CHROME ALLEN2.692.14
20248SCREW-PLUG-CHROME 10/32X1/42.692.14
20251FITTING-REAR CHAIN-CHROME2.692.14
20252ALLEN BOLT-1/4-20X1 1/4CR2.692.14
20253ALLEN BOLT-1/4-20X2 1/2CR4.994.24
20254ALLEN BOLT-1/4-24X1 1/4CR7.996.49
20258ALLEN PLUG-1/4-20 X 1/40.890.74
20261GASKETS-CCI OIL PUMP (PR)1.791.54
20275REVTECH POL.OIL PUMP ASSY73-91199.99164.99
20276REVTECH POL.OIL PUMP ASSY36-72199.99164.99
20281POL. OIL PUMP-B/TWIN 92-UP199.99164.99
54058O/SEAL-O/PUMP26227-58(10)13.9911.44
54254CHECKBALL-O/PUMP 8873(10)4.193.39





Part #   Description   List Price   Your Price
20029O/PUMP SHAFT-LONG-#26346-7016.9914.99
20840S&S OIL PUMP DRILLING FIXTURE39.4534.92
20859JIMS O/PUMP DRILL JIG BT 73-8084.9971.99
20927JIMS P/PMP SHFT KEY (26348-15)9.998.49
20930JIMS BILLET O/PUMP.STK.CVR 92-99409.99347.49
20931JIMS BILLET O/PMP CUST CVR.73-91409.99347.49
20933OILPUMP DRIVE GR 24TH (26345-73)49.9942.49
22304OIL PUMP STOK CVR B/T 92-UP409.99347.49
45766S&S OIL PUMP GASKET KT 36-914.453.83
45775S&S OIL PUMP GASKET KT.92-994.453.83
45827S&S BILLET OIL PUMP B/T 36-72294.95253.66
601117S&S HVHP OIL PUMP 84-91359.95309.56
601118S&S HVHP OIL PUMP 92-99294.95253.66





Part #   Description   List Price   Your Price
687307TPE PRO BILLET OIL PUMP EVO +92329.99279.99





Part #   Description   List Price   Your Price
24572O/PUMP PRES.REL.SPRING B/T36UP7.196.09
25206OIL PMP ALEN PLGS70-80 HD22.9918.99
25207OIL PMP ALEN PLGS81-UP HD25.9921.49
600152FUELING SUPER OIL PUMP TWINCAM469.99404.99
622149TC RACE PUMP 1999-2006544.99462.49
62215006 DYNA & 07 BIGTWIN OIL PUMP444.99377.49
667499CHROME ALLEN TOP OIL PUMP FITTING6.895.84



Search For Products

View My Saddlebags

checkout

Store Lobby

Hot New Products | Specials and Sales | About Our Company | Home | Contact Us | Hot Links
Terms & Shipping | Legal & Copyright | Credits

American Legend Motorcycles, Inc.
228 Lisle Industrial Ave.
Lexington, KY 40511
Sales - 1-888-272-9143
TechLine - 1-859-255-3544

© Copyright 1999-2007 American Legend Motorcycles, Inc. All rights reserved.
All trademarks are owned by Harley Davidson, Custom Chrome or American Legend Motorcycles, Inc.

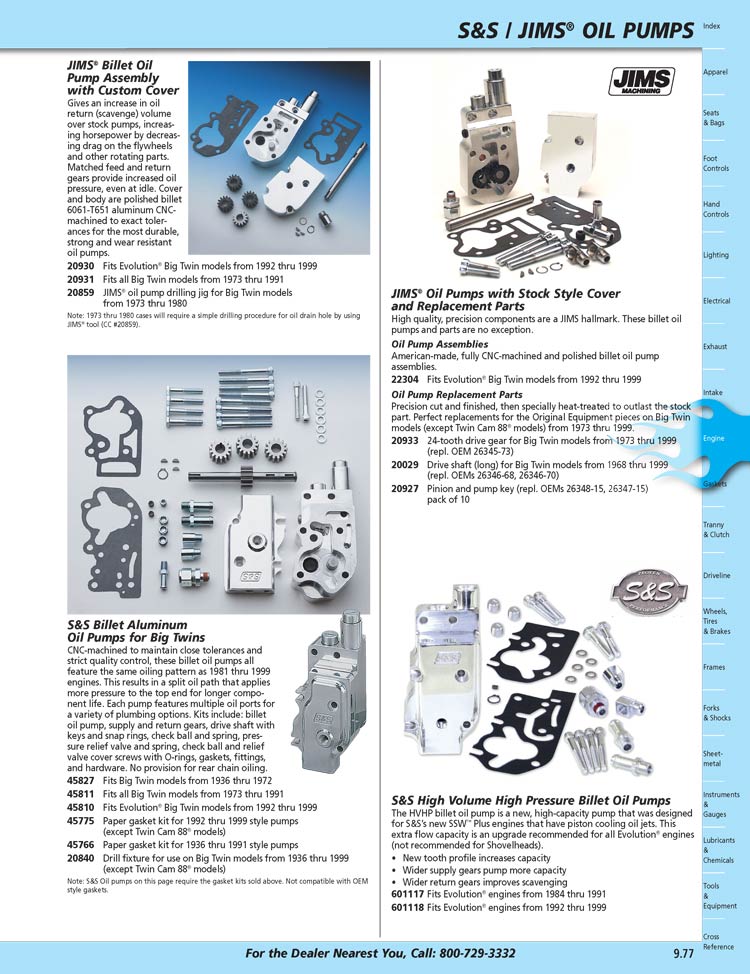

NEW!.. S & S BILLET ALUMINUM OIL PUMPS FOR BIG TWINS
CNC machined to maintain close tolerances and strict quality control, these billet oil pumps all feature the same oiling pattern as 1981 -up engines. This results in split oil path that applies more pressure to the top end for longer component life. Each pump features multiple oil ports for a variety of plumbing options. Kits include: billet oil pump, supply and return gears, drive shaft with keys and snap rings, check ball and spring, pressure relief valve and spring, check ball and relief valve cover screws with O-rings, gaskets, fittings, and hardware. No provision for rear chain oiling.

S & S DIRECT REPLACEMENT OIL PUMP KITS
The S & S oil pump incorporates the latest design features to supply 33% more oil than early stock cast iron oil pumps. Each S & S pump is machined with a pressure relief passageway above the oil pressure valve to allow trapped air and/or oil to bleed off quickly - valve operation is improved resulting in consistent oil pressure regardless of temperature or oil viscosity. A special bypass arrangement recirculates excess oil (above engine requirements) back to the supply side of the pump minimizing oil cavitation. Installations from 1936-1969 and 1981 -up are strictly bolt-on and require no modifications. Engines from 1970-1980 require a simple drilling step and engines from 1970-1972 require a plugging step - both steps can be performed while the engine is in the chassis. Each kit comes complete with oil pump assembly, paper gaskets, drive gear key, snap ring, mounting hardware kit that includes both early style and late style mounting bolts, and easy to follow instructions.

REVTECH OIL PUMP KITS
These kits are available in chrome-plated or polished versions for most For all Big Twin Models 1936 to present. The RevTech® oil pumps were designed to take advantage of all the improvements made over the years to the Original Equipment pumps. Even 1936 thru 1980 models can be easily fitted with a RevTech® oil pump to take advantage of these features which include an improved oil pressure regulation system that ensures perfect oil control to all  areas of the motor at all times, especially during initial start-up. All the oil line fittings and mounting hardware are chrome-plated. The oil pump body and cover have a redesigned smooth outer surface with counterbored holes for the sockethead mounting hardware that really enhances the overall style and appearance. The oil feed line can be routed to the stock location at the top of the cover or directly to the pressure gears through a fitting located at the bottom of the cover. The oil that lubricates the front and rear chains can be easily adjusted or blocked off entirely for belt drive applications with pipe plugs. These RevTech® oil pump kits were engineered and designed to be bolted right onto all engines 1936 thru 1969, or 1981 to present. Engines 1970 thru 1980 will require a small drilling operation, and 1970 thru 1972 engines will also need a plugging step. Both of these modifications can be easily done while the engine is still in the frame using CCI #20-265 oil pump drill fixture.(sold separately). Each kit includes all the snaprings, keys, gaskets, shaft, fittings, mounting hardware (1/4"-24 early-style and 1/4"-20 late-style) and detailed instructions.

For all big Twin Models 1992 to present

CHROME OIL PUMP FOR BIG TWINS
Our chrome oil pumps have been engineered to include the best design and performance features found on late model Harley® engines. High output supply and return gears for maximum flow - up to 33% more than early pumps. Improved oil pressure regulator with hardened plunger provides proper flow even during start-up. Selectable oiling system for primary or secondary chain lubrication with cut-off for belt drive Precision ground shafts for smooth running and positive seal. Oil pumps come complete with chrome oil fittings. mounting screws and installation hardware.

OIL PUMPS FOR BIG TWINS
Manufactured to Original Harley-Davidson® specifications and standards, these quality American made oil pump assemblies come complete with internal components.

DELKRON OIL PUMP BODY
This oil pump body is made of "6061 -T6" billet aluminum for strength. It resists scoring of the gear chambers better than stock. Precision "CNC" machined. Uses stock 1968-up pump parts except pressure relief valve which must be 1 981 -up style. Engines from late 1973-1980 require a simple drilling step and engines from 1968- early 1973 require a drilling and plugging step - both steps can be performed while the engine is in the chassis. Fits Big Twin models 1968-1991 and also works with 1936-1967 models when aluminum oil pump is used. Instructions included.

This CNC machined cover mounts on the stock oil pump and provides a clean, neater appearance. Mounting bolts included. Fits Big Twins late 1984-1991.

DONNIE SMITH SIGNATURE SERIES OIL PUMP COVER
Designed exclusively for Chrome Specialties by Donnie Smith, this custom oil pump cover is CNC machined from billet aluminum and triple chrome plated. Fits Big Twins 1968-1980 when primary belt drive is used.

CUSTOM OIL PUMP COVER
Chrome die-cast aluminum oil pump cover fits Big Twin models 1968-1980 when primary belt drive is used. Order mounting screws separately.

OIL PUMPS FOR SPORTSTERS
These hard to find replacement pumps are Manufactured to Original Harley-Davidson specifications and standards. Sold in kits complete with internal components.

MOTOR FACTORY OIL PUMP REBUILD KIT
Rebuild kit comes complete with check valve, 0-rings, oil seal, washers, retaining rings, woodruff keys and both early and late paper gaskets.

CHROME OIL PUMP SCREW KITS
Chrome kits are available with Acorn, Allen, Cap or Stock style hardware.

CHROME OIL LINE FITTING KIT
Chrome plated kit includes necessary fittings for oil pump and crankcase connections on Big Twin models 1970-1991.
8 piece kit.

HIGH PERFORMANCE OIL PUMP SPRING KITS
These kits are designed to solve low oil pressure problems common to Big Twins. Spring kit consists of 3 separate color-coded springs, each applying progressively more pressure on the relief valve plunger than the stock spring. This allows the owner to select from 3 output pressures: 20, 24 or 26 p.s.i. at road speed (55-60 mph) while maintaining a 10 p.s.i. minimum at idle. Adjustable spring kit combines a pressure relief cap and spring that allows for precise oil pressure adjustment with the turn of screw. Simply turn the thumbscrew to increase or decrease pressure. Allows "fine tuning" pump pressure for optimum performance.

LONG OIL PUMP NUTS
Exact reproduction of the long oil pump nut with 1/4"-24 thread used on OHV models 1936-1967. Replaces OEM 24831-41. Sold each.

This 6-pack of hard to find 1/4"-24 hex nuts fits Big Twins 1936-1968. Replaces OEM 7691W and 7036. Chrome.

OIL PUMP PLUG SET
Chrome Allen head style oil pump plug kit includes tappet screen, check valve, and relief valve plugs with 0-rings.

CUSTOM OIL PUMP PLUG KITS
Kits include chrome plugs for tappet screen, check valve, and relief valve. Sets of 3 plugs with 0-rings.


MOTOR FACTORY AMERICAN MADE OIL PUMP BUSHINGS
Premium grade Motor Factory® bushings are machined from high phosphor bearing bronze that's up to two times as strong as normal cast bushings. Motor Factory® bushings have excellent hardness, strength and will help minimize wear and provide a much longer service life than plated steel backed bushings.

DOSS 'Slotted' Oil Pump Cover for Big Twins
Here's a new Rick Doss' version of a classic accessory. By adding slots to the traditional chrome oil pump cover he achieves a whole new look that is both simple and attractive. Easy-to-install, includes chrome mounting hardware.

OIL PUMPS COVERS BY KURYAKYN
Pump Cover Conceal the clutter of oil lines going in and improve the looks of your out of the oil pump with this clean, neat and super easy to install design.

CHROME OIL PUMP COVERS FOR BIG TWINS
Designed to bolt-on to stock aluminum oil pumps and made from the finest materials available. Guaranteed to deliver unsurpassed styling and ease of installation. They fit all Big Twin models 1968 to present (except 1991 Sturgis models).
