American Legend Motorcycles, Inc.

Valves

Click on part numbers to add to your order





Part #   Description   List Price   Your Price
011760JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011761JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011762JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011763JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011764JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011770JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011771JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011772JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011773JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
011774JIMS HI-PERFORMANCE VALVE GUIDE14.9912.49
671000JIMS S/S INT VALVE29.9924.99
671001JIMS S/S EXHAUST VALVE29.9924.99
671002JIMS S/S EXHAUST VALVE29.9924.99
671005JIMS MANG/B VALVE GUIDE12.9910.74
671007JIMS MANG/B VALVE GUIDE14.9912.49
671009JIMS C/IRON VALVE GUIDE14.9912.49
671010JIMS C/IRON VALVE GUIDE14.9912.49
699040VALVES 05+ INTAKE 1.80549.9941.49
699041VALVES 05+ EXHAUST 1.57549.9941.49
699042VALVES 05+ INTAKE 1.90049.9941.49
699043VALVES 05+ EXHAUST 1.62549.9941.49
99000VALVE STAINLESS 18080-58A69.9957.99
99008VALVE STAINLESS 18023-8774.9961.49
99009VALVE STAINLESS 18024-8769.9957.99
99010VALVE STAINLESS 18074-6659.9948.99
99011VALVE STAINLESS 18082-5759.9948.99
99012VALVE-INTAKE NITRIDE-18074-6661.9950.49
99013VALVE-EXHAUST NITRIDE-18082-5761.9950.49
99014VALVE INTAKE STAINLESS O/S 84-UP69.9958.99
99015VALVE EXHAUST STAINLESS O/S 84-UP69.9958.99
99020STR.MASTER S/S VALVE 18074-6642.9935.49
99021STR.MASTER S/S VALVE 18082-5742.9935.49
99028VALVE-INTAKE CHROME-18071-4869.9958.99
99032VALVE STAINLESS 18070-7069.9958.99
99034VALVE STAINLESS 18070-5869.9958.99
99059RACE MSTR EXHAUST VALVE TC 1.56549.9940.99
99060STR.MASTER S/S VALVE 18074-8349.9940.99
99061STR.MASTER S/S VALVE 18082-8349.9940.99
99062VALVE IN. S/STEEL 883 TO 120069.9958.99
99063VALVE EX. S/STEEL 883 TO 120069.9957.99
99064S/S IN.VALVE 1.94 -.60B/T84UP49.9940.99
99066RACE MSTR INT VALVE EVO/TC 1.90049.9940.99
99078SVRE DUTY EXHAUST VALVE TC 88 1.56569.9957.99
99079SVRE DUTY EXHAUST VALVE TC 88 1.56569.9957.99
99080VALVE STAINLESS 18031-8669.9958.99
99081VALVE-EXHAUST CHROME-18082-83-EVO69.9957.99
99082VALVE STAINLESS EVO INTAKE 71.9959.99
99083VALVE STAINLESS 18030-8669.9957.99
99084VALVE-INTAKE CHROME-OVERSIZE-EVO71.9959.99
99086VALVE INTAKE NITRIDE EVO.84-UP69.9958.99
99087VALVE EXHAUST NITRIDE EVO.84-UP65.9955.99
99092S/S INTAKE VALVE 1.94 B/T 84-UP71.9959.99
99115SEV.DUTY S/S INTAKE TC/EVO 1.90071.9959.99





Part #   Description   List Price   Your Price
55100BLACK DIAMOND IN VALVE 18074-83A8 EVO84-24.9920.99
55101BLACK DIAMOND IN VALVE 18074-83+10EVO8424.9923.99
55102BLACK DIAMOND EX VALVE 18082-83 EVO 84UP24.9920.99
55103BLACK DIAMOND HI-FLO IN VALVE EVO BT 84-24.9920.99
55104BLACK DIAMOND HI-FLO EX VALVE EVO BT 84-24.9920.99
55107IN VALVE- 883T01200 XL CONVERT24.9920.99
55108EX VALVE-883 TO 1200 XL CONVSN24.9920.99
55111BLACK DIAMOND IN VALVE 18070-70 XL 70-8324.9920.99
55114BLACK DIAMOND EX VALVE 18080-58R XL70-8324.9920.99
55115BLACK DIAMOND EX VALVE+050 XL 1970-8324.9923.99
55116BLACK DIAMOND EX VALVE 18080-70R XLR70UP24.9923.99
55140BLACK DIAMOND INTAK.VALVE 18074-66 BT66-8324.9920.99
55141BLACK DIAMOND EXHAUST.VALVE 18082-57 BT66-8324.9920.99
55162INTAKE VALVE 1200CC XL 1986-UP24.9920.99
55163EXHAUST VALVE 1200CC XL 1986UP24.9920.99
55201B.D IN.VALVE THCK STEM BT81-8324.9923.99
55202BLACK DIAMOND EX.VALVE THCK STEM BT81-8324.9923.99
55211BLK.DIA1.90 INTAKE VALVE.TWIN CAM24.9920.99
55212BLK.DIA 1.565 EX.VLVE TW CAM24.9920.99
56013VLV-PREMIUM EXHAUST 48-E8118.9915.99
56014VLV-PREMIUM EXHAUST L81-8418.9915.99
56015VLV-PREMIUM INT 66-E8118.9915.99
56016VLV-PREMIUM INT L81-8418.9915.99
56019VLV-PREMIUM-EXHAUST 58-85 XL18.9915.99
56020VLV-PREMIUM-INT 70-85 XL18.9915.99
58080REVTECH INTAKE VALVE 883 XL 86-UP18.9915.99
58082R/T INTAKE VALVE 1100/1200 XL87UP18.9915.99
58089REVTECH INTAKE VLV.EVO-1.940 DIA.18.9915.99
58092VALVE-REVTEC/INT80V2 84UP18.9915.99
58093VALVE-REVTEC/EXH80V2 84UP18.9915.99
58094VLV-REVTEC/EXH48-84SHV/PN18.9915.99
58095VLV-REVTEC/INT48-84SHV/PN18.9915.99
58098VALVE-REVTECH/EXHAUST XL58-8518.9915.99
58099VALVE-REVTECH/INTAKE XL58-8518.9915.99





Part #   Description   List Price   Your Price
010571MTR FACT VALVE SRRNG ST F/ 74&8035.9930.49
24173VALVE SPRINGS-CRANE-B/T1948-8454.9945.49
24174SPRING KIT-STEEL-B/T48-8470.9958.99
24176SPRING KIT-175#/STEEL-EVO 84UP70.9958.99
24177SPR.KIT-175#/TITANIUM-EVO 84U129.99106.99
24186SPR.KIT-175#/THERMO-EVOL.84-UP159.99134.99
24187SPR.KIT-155#/THERMO-EVOL.84-UP159.99134.99
24188SPR.KIT-155#/TITANIUM-EVO 84UP129.99106.99
24498CRANE 185#STEEL V/SPRINGS 84UP129.99104.99
24568CRANE VALVE SPRING KIT 155#B/T70.9958.99
30156VALVE SPRNG KT.W/STEEL RET.B/T99.9984.99
30157VALVE SPRING KT W/TIT.RET B/T199.99169.99
30158SUPER V/SPRING KT C/MLY RET BT78.9967.49
30159SUPER V/SPRING KT.TITN.RET B/T214.99182.49
699280RACE MSTR KIT 05+ TC 600 LIFT229.99194.99
699281RACE MSTR KIT 05+ TC 600 LIFT279.99237.99
699282RACE MSTR KIT 05+ TC 650 LIFT259.99219.99
99211STREET MSTR.VALVE KT.B/T 80-84215.99177.99
99212VALVE TRAIN COMP.KIT SHOVELHD.215.99177.99
99213VALVE TRAIN COMP.KIT EVO 84-UP229.99187.99
99214STREET MSTR.VALVE KIT B/T84-UP279.99229.99
99272S/DUTY VALVE KIT SHOVEL .500+299.99242.49
99275R/MSTR VALVE KIT TC UP TO .550229.99186.49
99277S/DUTY VALVE KIT EVO .550 /.650319.99259.99
99307S/DUTY NIT VALVE KIT TC .650319.99259.99



Search For Products

View My Saddlebags

checkout

Store Lobby

Hot New Products | Specials and Sales | About Our Company | Home | Contact Us | Hot Links
Terms & Shipping | Legal & Copyright | Credits

American Legend Motorcycles, Inc.
228 Lisle Industrial Ave.
Lexington, KY 40511
Sales - 1-888-272-9143
TechLine - 1-859-255-3544

© Copyright 1999-2007 American Legend Motorcycles, Inc. All rights reserved.
All trademarks are owned by Harley Davidson, Custom Chrome or American Legend Motorcycles, Inc.





































Manley 'Street Master' Valve Train Component Kits
Feature Manley 'Street Master' valves, double spring assemblies, steel or titanium top collars and machined keys for maximum performance. These spring kits require no machining for installation.

Manley 'Street Master' Valves
Each valve features stainless steel construction with a chrome-plated stem, hardened tip, smoothly-turned underhead angle and radius, as well as a forged combustion dish and machined combustion face rim. They're impervious to unleaded fuels. Sold in pairs.

Manley Stainless Steel Valves
Designed to outflow stock valves and feature chrome or nitrided stems to eliminate galling. Impervious to heat and unleaded fuels. Sold in pairs.

Manley Thin-Stem Valves for Shovelheads
These valves use smaller-than-stock stem diameters to achieve lighter weight and increased flow. They require the use of the special thin-stem valve guides (listed below), thin-stem keepers (CCI #99-294) and Manley lift kit CCI #99-219 or #99-226. Sold in pairs.

Note: CCI #99-038 valve has a steep, tulip-shaped head for maximum flow in high RPM engines.

Manley Valves for 883cc/ l2OOcc Conversion
To fully benefit from an 883cc to 1200cc conversion, you need to install larger valves. These 1.48" exhaust and 1.715" intake valves from 1200cc Sportster® models are .060"-shorter-than-stock for the 883cc heads. Forged one-piece stainless steel with chrome stems and hardened tips. Sold in pairs.

Manley Performance Valves for 1970 thru 1985 Sportster® Models
One-piece stainless steel valves designed for maximum flow in high RPM engines. CCI #99-037 has steep tulip-shaped head designed for better flow while CCI #99-002 has a flatter head shape better suited to street use. CCI #99-003 is .080" longer than the stock intake valves. Sold in pairs.

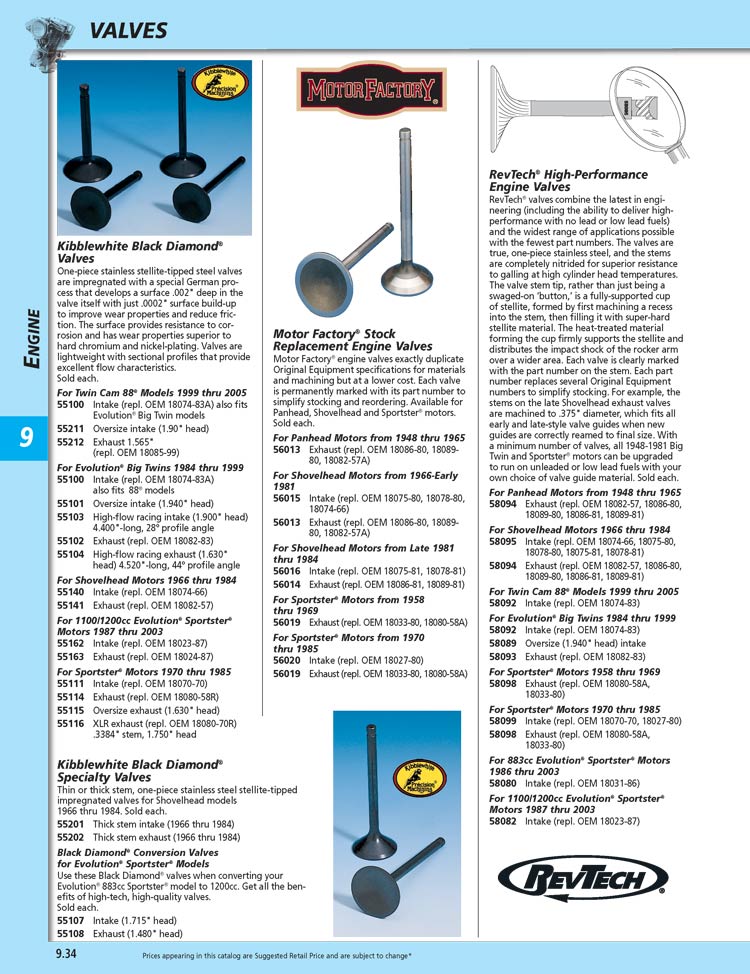

Kibblewhite Black Diamond® Valves
One-piece stainless steel stellite-tipped steel valves are impregnated with a special German process that develops a surface .002" deep in the valve itself with just .0002" surface build-up to improve wear properties and reduce friction. The surface provides resistance to corrosion and has wear properties superior to hard chromium and nickel-plating. Valves are lightweight with sectional profiles that provide excellent flow characteristics. Sold each.

Kibblewhite Razorback™ Valves
Made from one-piece forgings of heat and corrosion resistant EV8 stainless steel. Fully CNC-machined with hard chromed stems. Sold each.

Kibblewhite Black Diamond® Specialty Valves Thin or thick stem, one-piece stainless steel stellite tipped impregnated valves for Shovelhead models 1966 thru 1984.

Black Diamond® Conversion Valves for Evolution® Sportster® Models Use these Black Diamond® valves when converting your Evolution® 883cc Sportster® model to 1200cc. Get all the benefits of high-tech, high-quality valves. Sold each.

Crane Complete Valve and Spring Kits The key to maximizing high-performance gains is to match components to one another. Crane has taken the guesswork out of matching critical valve train parts with these kits that include springs, retainers, valves and locks.

Crane Engine Valves Crane's engineers have matched the materials in these valves to the different operating requirements of the head, stem and tip. The result is a 'two piece' valve that is friction-welded at mid-stem using a technique that creates a bond stronger than the material itself, The valve heads are made of 21-2N stainless alloy for its high-temperature properties, and SAE 8645 martensitic hardened steel alloy (50 RC Rockwell hardness) is used for the upper valve stem to minimize wear in the tip and keeper areas. The surface of the stems are either hard chrome plated or nitrided to resist galling. For extreme duty, Crane also offers exhaust valves with Inconel 751 heads and lower stems in place of the stainless alloy. Sold each.

Premium® Stock Replacement Engine Valves Premium® engine valves exactly duplicate Original Equipment specifications for materials and machining but at a lower cost. Each valve is permanently marked with its part number to simplify stocking and reordering. Available for Knucklehead, Panhead and Shovelhead motors as well as the very latest Evolution® powered Big Twin and Sportster® motors. Sold each.

RevTech® High-Performance Engine Valves RevTech® valves combine the latest in engineering (including the ability to deliver high-performance with no lead or low lead fuels) and the widest range of applications possible with the fewest part numbers. The valves are true, one-piece stainless steel, and the stems are completely nitrided for superior resistance to galling at high cylinder head temperatures. The valve stem tip, rather than just being a swaged-on 'button,' is a fully-supported cup of stellite, formed by first machining a recess into the stem, then filling it with super-hard stellite material. The heat-treated material forming the cup firmly supports the stellite and distributes the impact shock of the rocker arm over a wider area. Each valve is clearly marked with the part number on the stem. Each part number replaces several Original Equipment numbers to simplify stocking. For example, the stems on the late Shovelhead exhaust valves are machined to .375" diameter, which fits all early and late-style valve guides when new guides are correctly reamed to final size. With a minimum number of valves, all 1948 thru 1981 Big Twin and Sportster® motors can be upgraded to run on unleaded or low lead fuels with your own choice of valve guide material. Sold each.

Rowe Engine Valves
Top quality American made valves for Big Twins and Sportsters®. All Rowe valves are one-piece drop forged construction and precision machined. Available with standard roller-burnished head and stem or with black Melonite coated stem. Black Melonite is a nitrite equivalent with excellent wear and lubrication qualities. Each comes individually color boxed complete with assembly lube. Sold each.
